Projects

Projects collect and organize dependencies associated with a patcher or set of patches. These dependencies can include patches, media files, code, and third-party externals.

Projects also extend the main Max search path. All files in a project can locate other files in the same project.

  • Project-specific elements are loaded before any other files on the Max search path.

  • Project-specific assets don't have to be added to the main Max search path, isolating them from other patches and Projects.

  • You can switch between global and Project-local assets.

  • Using projects lets you reduce the number of folders in Max's global search, which can improve patcher loading and editing speed.

  • ensures Project-specific elements are loaded before any other files on the Max search path

  • isolates Project-specific assets from other patches and Projects

  • allows you to switch between global and Project-local assets

  • can improve patcher loading and editing speed by reducing the number of paths in Max's global search path

Creating Projects

You can start with a new empty project, or create a project from an existing patcher.

  • To create a new empty project, choose New Project from the File menu. This action creates a Max Project at the location specified. By default, this is ~/Documents/Max/Projects (Mac) or (User Folder)\My Documents\Max\Projects (Win). Projects can be saved anywhere, but it is recommended to use the default location.
  • To create a project from your existing open patcher, choose Save as Project from the File menu. This will close and re-open your patcher as a project.

Once the project is created, you don't need to save it: projects are saved automatically as you edit them.

Project Window

Project Window

  1. Category header: Files in your project are automatically assigned to a category, like "Patchers", "Media", "Code", or "Data". Categories are only shown if there are matching files in the project.
  2. Patcher opened with project: A project may contain one or more "top-level patchers". These are displayed in bold in the Project window, and are automatically opened when the project is loaded.
  3. Dependencies: Files local to a project are shown in regular, non-italic text. Dependencies of project files are shown in a darker color, and if those files are only found on the global Max search path, they are shown in italics. Dependencies cannot be removed from a project from the Project pindow.
  4. Add files to Project: To add files to a project, they can be created from scratch, patchers can be created from templates, and existing files can be added to projects. Files can be removed by right-clicking on the file name in the Project window and selecting "Remove from Project." Alternatively, you can highlight the name and use the backspace or delete key on your keyboard.
  5. Details view: When toggled on and a file from the list is selected, details about the file are shown, including the name, kind and absolute path of the file. If the file is a dependency (whether explicit or implicit), a link is shown to highlight the patchers in the file list which use it. Also shown is whether the file is opened with the project or not.
  6. Hierarchical and flat view modes: Hierarchical view lists all dependencies underneath the file which depends on them. Flat view sorts all files, whether dependencies or not, into a flat list.
  7. Manage project: From the Manage Project menu, you can
    • consolidate and deconsolidate. Consolidation copies all dependencies to the local project folder. De-consolidation removes any files which can be found on the global Max search path from your local project directory.
    • archive. Similar to consolidation, archiving creates a copy of all files needed by the project. Unlike consolidation, archiving creates a new ".maxzip" archive file that can be saved and distributed as a single file.
    • build collectives and applications.
    • export as a Max for Live device.
  8. Project settings: Open the Project Inspector window, the Project Seach Path window, or the Open Actions text window.
  9. Reload Project: Refreshes the Project window.
  10. Show Project folder: Opens the project's location on disk.

Project Inspector

The Project Inspector allows you to set preferences for the project's behavior.

  • Always Localize Project Items: When enabled, files added to a project will always be copied to the project's folder before being included in the project. (default = off)

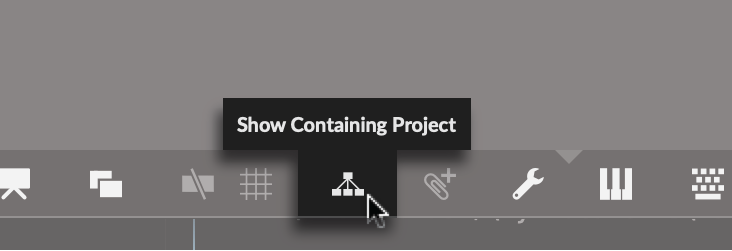

  • Hide Project Window After Opening: When enabled (and only if the project contains patchers which are marked "Open on Project Load"), the project window will not be visible after the Project opens. You can open the Project window later by click on the Show Containing Project button in the patcher's toolbar. (default = off)

  • Keep Project Folder Organized: When enabled, files in the project's folder are automatically sorted into appropriate subfolders based on the file's category. (default = on)

  • Show Patcher Dependencies: When enabled, implicit dependencies are displayed in the Project window. (default = on)

  • Development Path Type: When enabled, allows you to specify the path type for the folder specified in the Development Path setting. Options are disabled, relative, and absolute.

  • Development Path: Allows you to choose a project-specific folder for development of Max for Live projects. When set, all device files for the project will be saved to and referenced from this location. When disabled, the project uses the global folder ~/Documents/Max 8/Max for Live Devices (Mac) or (User Folder)\My Documents\Max 8\Max for Live Devices (Win).

Project Search Paths

Within a project, patchers and other kinds of files may be marked either global or local. Files marked global tell Max to use the file found on the global search path, if available. Files marked local tell Max to use the file found on the Project's search path first, if available. You also have the ability to publish a file to the global search path or to localize a file to your project's search path.

The project-local search path consists of:

  1. Project-local folders: Projects maintain a folder on your hard drive. The contents of this folder (and its subfolders) are preferentially searched when Max is looking for files requested by project members. New files added to a project are created inside this folder by default, and you can manually add files to it, too.
  2. Singleton folders: Projects can reference files which are neither in the Max global search path, nor in the project folder. When searching for files, the folders containing these "singletons" are searched (non-recursively), as well.
  3. Project search paths: Projects also maintain a list of additional folders to be searched when locating project assets. This list works similarly to the list found in Max's File Preferences... window, but is used only by the project.

Dependencies are always presumed to be local. If no local version can be found, the global version will be used.

Open Actions

Project Open Actions allow you to specify what Max configuration options are loaded when apProject opens.

In the Open Actions text edit window, you can write various messages to Max. For example, messages such as ;dsp takeover 1 or ;max overdrive 1 will enable Scheduler in Audio Interrupt and Overdrive, respectively. When the project is loaded (or reloaded via the Reload Project button in the Project toolbar), the Open Actions will be executed.

Max for Live Device Projects

All Max for Live devices are projects. There are a few differences between regular Max projects and Max for Live device projects:

  • The default location for Max for Live Device Projects is ~/Documents/Max 8/Max for Live Devices (Mac) or (User Folder)\My Documents\Max 8\Max for Live Devices (Win)

  • Unfreezing a device will unpack the device's assets to the project's folder, rather than to the "Unfrozen Max Device Files" folder on the Desktop.

  • Conflicts are now auto-resolved in favor of the Device version (although you can override this in the Resolve Conflicts window if you need to).

  • The Archive... item in the Manage Project toolbar menu creates a datestamped ".zip" archive of a frozen copy of the current device.

  • Freezing a device will include all files listed in the Project window (both explicit and implicit items).

Freezing a device which utilizes 3rd party externals will automatically collect and freeze the externals for other Max platforms if they can be found in Max's (or the project's) search path. For instance, freezing a device which uses myextern.mxe64 on Windows will include myextern.mxo (macOS) externals if they are available. None of these need to be added explicitly to the project.
